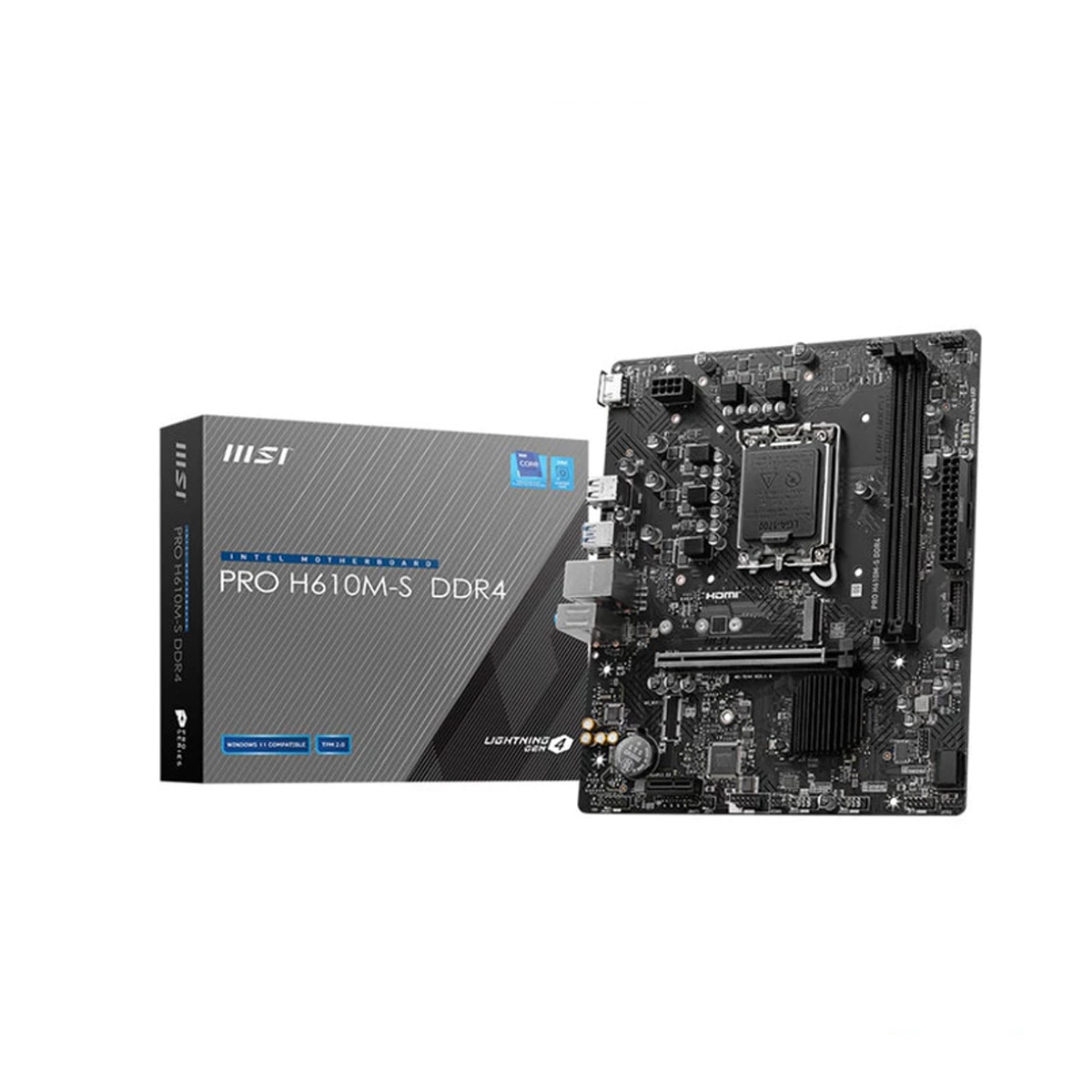

MSI MAINBOARD (1700) PRO H610M-S DDR4 – A0159466

Description

Brand : MSI

Model : PRO H610M-S DDR4

CPU Support : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

CPU Brand : Intel

Socket : 1700

Chipset : Intel H610

Memory Support : 2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Maximum Memory Bus : 3200

Graphics : 1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Multi Graphic Support : None

Audio : Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Expansion Slots : 1 x PCI-E x16 slot

1 x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Maximum PCIe Version : PCIe 4.0

Storage : 1 x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2 x SATA 6G

M.2 Storage Type Support : NVMe

M.2 Slot : 1

USB : 4 x USB 2.0 (Rear)

4 x USB 2.0 (Front)

2 x USB 5Gbps Type A (Rear)

2 x USB 5Gbps Type A (Front)

Internal I/O Connectors : 1 x Power Connector(ATX_PWR)

1 x Power Connector(CPU_PWR)

1 x CPU Fan

1 x System Fan

2 x Front Panel (JFP)

1 x Chassis Intrusion (JCI)

1 x Front Audio (JAUD)

1 x Com Port (JCOM)

1 x TPM pin header(Support TPM 2.0)

4 x USB 2.0 ports

Back Panel Connectors : 1 x HDMI™

2 x USB 3.2 Gen 1 5Gbps (Type-A)

4 x USB 2.0

1 x LAN port

Audio Connectors

LAN : Realtek® RTL8111H Gigabit LAN

Wireless Data Network : None

Form Factor : Micro ATX

H/W Monitoring : N/A

BIOS : N/A

Special Features : LED FEATURE 4x EZ Debug LED

Software Features : N/A

Operating System Support : Support for Windows® 11 64-bit, Windows® 10 64-bit

Package Contents : N/A

Dimension (W x D x H) : 20.00 x 23.61 x 0.00 cm

Net Weight : 0.00

Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm

Gross Weight : 0.00

Volume : 0.00

ประกัน : 3 ปี
